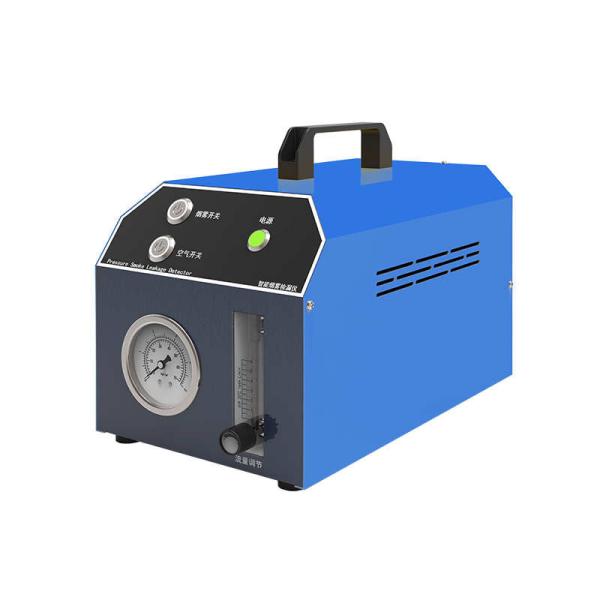

Car Smoke Leak Detector automobile diagnostic and regulating pipe leak detector

Products Description

CL663 Smoke Automotive Leak Locator is an innovative product that provide safe and convenient method to check leaks in automotive systems. Its so far the fastest way of detecting & locating the leak position of all pipe system in an vehicle at an affordable price, every garage and workshop will need one.

Professional, Flexible, Affordable

Easy to Operate
Fast in helping locate the leak
Multi-functional
Adjustable LED function time control
Adjustable flow control
Inbuild air compressor
Stable output pressure
Best mate for automotive scanner

Product parameter:
Output pressure:35~42Psi
Output flow:4L/Min
Power supply: 12V
Air source: built-in
Test oil capacity:10ML
Dimensions of the Main Unit 198 x 320 x 246mm
Package weight:3.8KG

The Main Function:

Tightness Test : It can test the tightness and leakage of the tested pipeline under system pressure.
Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.
EVAP System Test: it can test the leakage of fuel evaporation in the EVAP system.

Feature

Simple To Operate

The Smoke Automotive Leak Locator is easily controlled with a timer setting and flow control. Set the timer then the machine will generate smoke, and control the flow with the flow controller.
The output is regulated to 12~14 Inches of Water Column, this pressure is perfect to perform leak test of EVAP system and other automotive systems with no damage to the vehicle sealing.

Save time and fast leak detect

In most cases, a scan tool may find out pressure sensors abnormal etc., while actully the 'pressure low' problem is caused by leak somewhere.

Multi-function

The Smoke Automotive Leak Locator is a multi purpose tool essential for EVAP system, but also applicable for: EGR valves, Gaskets & Fittings, Hoses, Worn Throttle shafts, Break Boosters, Catalytic Converters, Oil Leaks, Lamp Housings, manifolds and more....
LED time indicator, Adjustable air flow and 1 ~ 20 minutes adjustable operating time
Adjustable timer and air flow to perform leak test on different system that requires different flow amount.

Notes:

* Please do leak detection away from smoke-sensitive parts.

* Do not run the detector over 8 minutes. It needs interval rest.

* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.

* The round parts of this detector is with temperature, be careful to avoid scalding injury.
The following figure is suggested to be checked on the computer

Maintenance:

With long time high temperature, the smoke and oil will oxidize and deteriorate.

It will infect the service life of smoke generated part, so please change smoke and oil regularly.

1. Before filling fresh oil, please pour out the remaining oil in the detector.


2. When the smoke output has water drops, please replace with fresh oil.


3. Liquid paraffin and baby oil are OK.(Liquid is not included in the package)


Please fill fresh oil with equipped oil bottle.
