Infrared Heating Lamp 3 Lamps Infrared Heat Lamp For Paint Drying

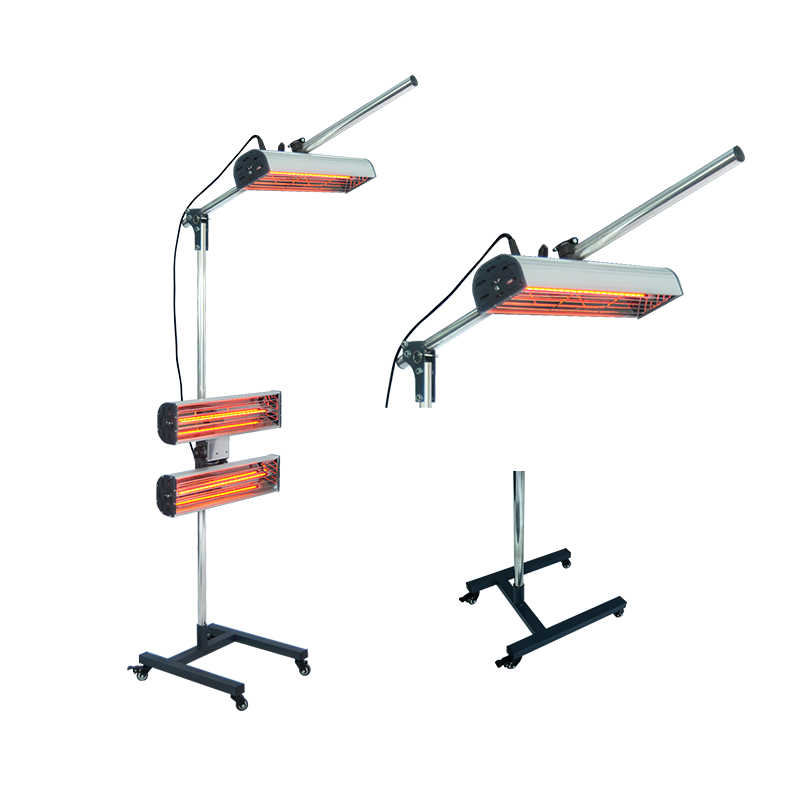

Introduction of Portable Triple Head Infrared Heat Lamp
Using high quality international special light source infrared lamps for drying paint curing lamp for car body paint
Product Description
The convenient series has made some relatively humanized
optimization for the situation that the paint repair station is
tight or the space is limited.
The weight of the equipment is greatly reduced without affecting
the stability as the stainless steel column with high load bearing
and the aluminum alloy lamp plate shell.
It is also equipped with 4 universal wheels, which can easily
switch between multiple stations.
In the limited space, we still retained as many independent control
modules as possible, really do fine but not simple.
Feature:
Powerful penetration directly into the inner paint layer;
completely drying double component paint within 15 minutes and
polyester putty within 5 minutes
Short wave infrared emitter modules: high light emitting efficiency
Switch: CE certified, high quality and stable performance
Long life emitter: life span up to 6000 hours, even radiation
Avantage:
√ 【Curing Area】This paint baking lamp can cure 800mm*800mm , and
the working temperature can reach 60-80C . Equipped with a powerful
1000W shortwave infrared lamp, which can make heat flow back
through conduction coating.
√ 【Timing Function】0-60 minutes intelligent timing function,
automatically stop curing and heating at that time, which can
effectively avoid curing and heating for too long and causing
damage (set the time as needed)
√ 【Infrared Shortwave】Infrared shortwave adopts quartz halogen
infrared tube, high luminous efficiency, strong penetrability, less
visible light, low glare; heating directly from the inside,
shortening the curing time, and high working efficiency
√ 【Widely Application】Infrared curing lamps are widely used in car
spray booths, partial paint drying, putty drying, and car spray
booths. It is an ideal tool for on-site repair, engine drying,
strip removal, and drying. And we are the production factory, if
you need other models of machines or if you have any operational
problems, please contact us in time
Technical parameters
| Model | XDX3 |
| Set time: | 1 - 60min |
| Working Power: | 20 - 100% |
| Paint area: | 800x800mm |
| Lift mode: | Manual adjustment |
| Voltage: | 110V 60Hz |
| Max power: | 3KW |
| Net weight: | 8.5KG |
Packing list of equipment
| Serial number | Name of name | Components | Quantity | Remarks |
| 1 | Column | 1 piece | ||
| 2 | Base | 1 piece | ||
| 3 | Lamp tray | 1 piece | ||
| 4 | Casters | 1.5 inches | 4 pieces | |
| 5 | Instructions | 1 |
Note :
1: Try to avoid exposure of the human body to infrared light, avoid
high temperature burns or allergy to infrared rays, etc.
2: Because the paint baking lamp is relatively small, it is
suitable for curing and heating in a relatively small area. If it
is used in a large area, the curing heating effect may be reduced,
and the curing heating time will be longer.
3: When in use, the temperature is too high during work, try not to
have anything around the paint lamp, because it will cause poor air
circulation or poor heat dissipation.
4: If you want to replace the lamp, please strictly refer to the
manual or consult us.
FAQ
1. Why choose our factory?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.
2.The advantage for our product?
High efficiency , energy saving,delivery fast and good quality
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4. How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.
6. What payment is available?
L/C at sight, via Alibaba or T/T 30% deposits before production and 70% balance to be paid before shipment.
7. The delivery period Warranty
Usually 5-12 days and the machine have one year warranty.
|
|
